DRUM FILTRATION SYSTEM
DRUM FILTRATION SYSTEM
Couldn't load pickup availability
✅ ECO 20
external cleaning up ( required installation ) Specifications Eco-20
MAX Flow 5800GPH
Pond Size Suggested 11500GAL
Standard flow is 25 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm
Material:
PP 10 mm housing / PP 15 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
3 x 110 mm inputs
2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 38 x 40 cm
Screen panel 120 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
✅ ECO 22
external cleaning up ( required installation ) Specifications Eco-22
MAX Flow 5800GPH
Pond Size Suggested 11500GAL
Standard flow is 22 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm
Material:
PP 10 mm housing / PP 15 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
3 x 110 mm inputs
2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 40 x 40 cm
Screen panel 70 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
✅ ECO 35
external cleaning up ( required installation ) Specifications PP-35
MAX Flow 9250GPH
Pond suggested up to 18000GAL
Standard flow is 35 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm
Material:
PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
4 x 110 mm inputs
2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 40 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
✅ ECO 40
external cleaning up ( required installation )

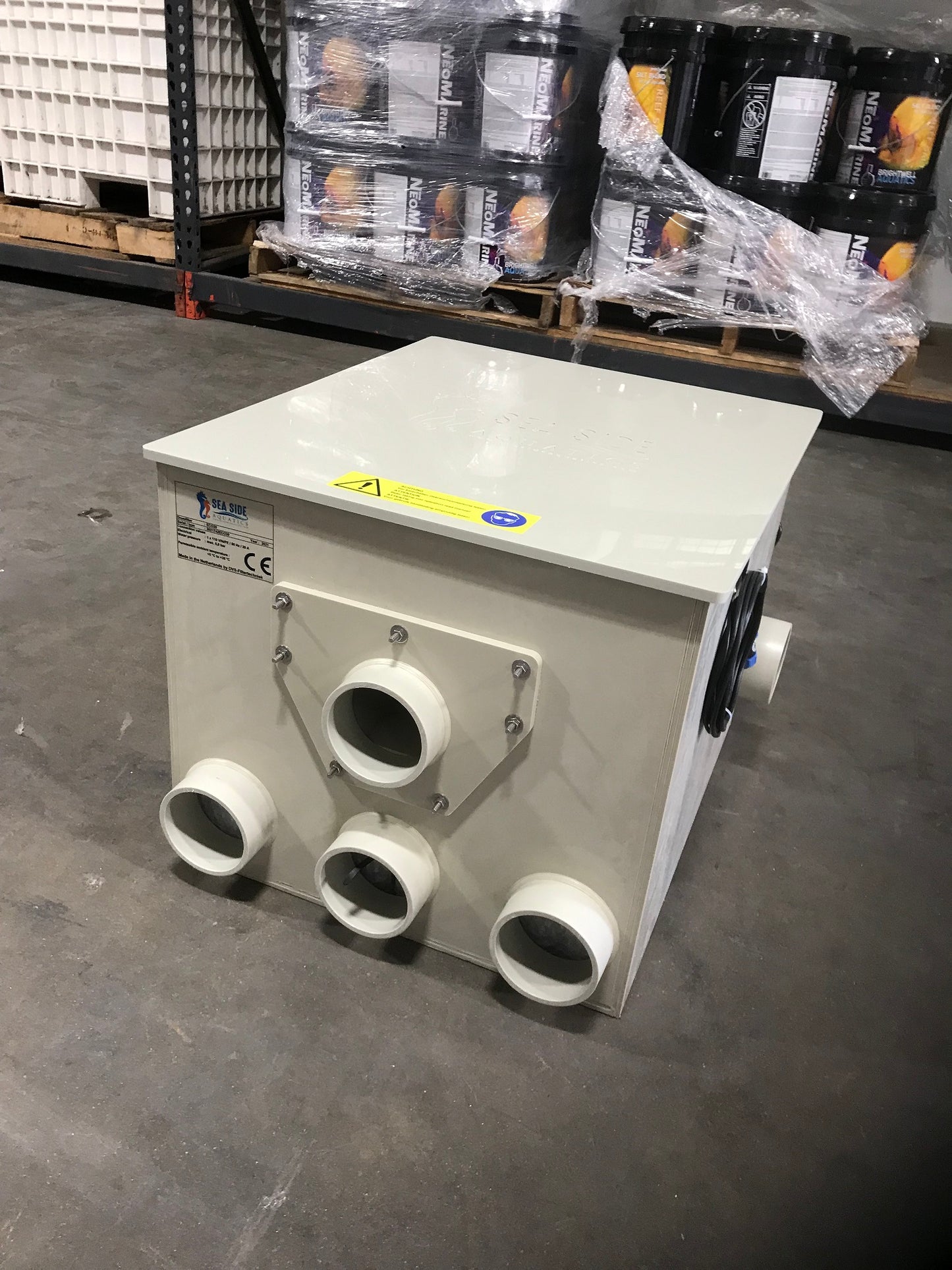

PP40 ONLY COMES WITH 4 INLET, PICTURE SHOWED 3
Specifications PP-35
MAX Flow 10500GPH
Pond suggested up to 18000GAL
Standard flow is 40 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm
Material:
PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
4 x 110 mm inputs (4")
2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 40 x 50 cm
Screen panel 120 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
✅ ECO 65
external cleaning up ( required installation ) Specifications PP-65
MAX FLOW 17000GPH
Pond Suggested 34000GAL
Standard flow is 65 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm
Material:
PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
6 x 110 mm inputs
6 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 60 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
